ETCHING MACHINE

ETCHING MACHINE

Vertical Etching Machines are designed for modern etching of Line and Halfone plates (copper or zinc), aluminium metal labels,also etching of printed circuits boards by conventional process. These machines are made of acid resisting PVC such as nitric, chromic, cupric and ferric chloride, mounted upon an iron base provided with anti-rust paint. The acid tank is fitted with a plastic tube for draining out acid. There is also a fume exhaust to let out the acid fumes to conform to the Factories Act Regulations. Plastic cover for motor is provided to safe guard the motor from acid.

ALSO AVAILABLE: Bigger unit of 120 lit. capacity, Racks for mounting PCBs & Horizontal Heater with Temperature Controller.

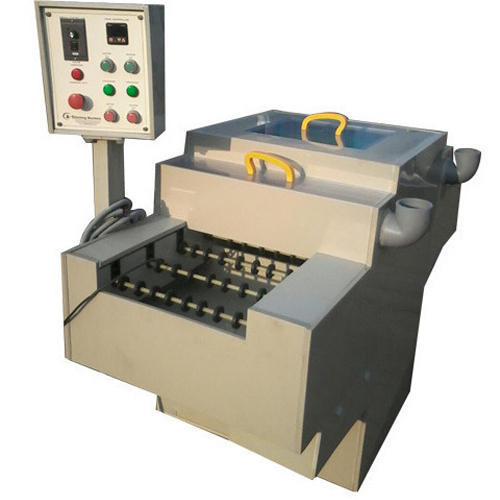

CONVEYORISED ETCHING MACHINE

CONVEYORISED ETCHING MACHINE

This machine is for PCB etching ranging from 6 x 6 cm to 60 cm. X any length in PVC Body with PVC Tank, Recirculation Pump, DC Geared Motor for variable speed of conveyer, Titanium Cooling Coil, Heater, Sprays in both Etching and Rinsing Chambers, Loading Zone, Unloading Zone, Conveyor Rods, PP Discs, PP Gears, Ti. Shaft etc, Solution sump capacity 100 ltrs. with motorised chemical pumps for etching and spray zone.

ALSO AVAILABLE: Conveyorised Developer Machine, Ink-Stripping Machine,
V-Grooving Machine,Auto Stacker etc.
